CNC Punch Services

Industries Served

Punching can be used to create any size and shape feature or part from thin gauge metal sheets. From simple items such as washers to complex items such as ZTR lawnmower decks, we have worked with the medical, recreational, automotive and military industries to create punched metal parts and assemblies such as:

• Radiator / Heat Exchanger
  – Cars and Trucks
• Lawn Care
  – Lawnmower decks for ZTR mowers
  – Misc. sheet metal parts/brackets
• Healthcare
  – Wheelchair assist platforms
  – Supply cabinets
• Military Use
  – Radiator mounts for off-road use
• Stored Energy Applications
  – Motorcycle, ATV and Off-Road vehicle battery boxes
• Artistic Elements
  – Playground Art (Cut outs)
  – Screen Layouts
  – Plaques and Signs

Materials Used

We can work with a variety of sheet metals including:

• Stainless Steel- All Grades
• Carbon Steel
• Mild Steel
• Cold Rolled Steel
• HSLA Grade 50 Steel
• All Other Steel Alloys
• Aluminum – All Grades
• Brass – All Alloys
• Copper – All Alloys
• Nickel and Nickel Alloys

Part Dimensional Limitations

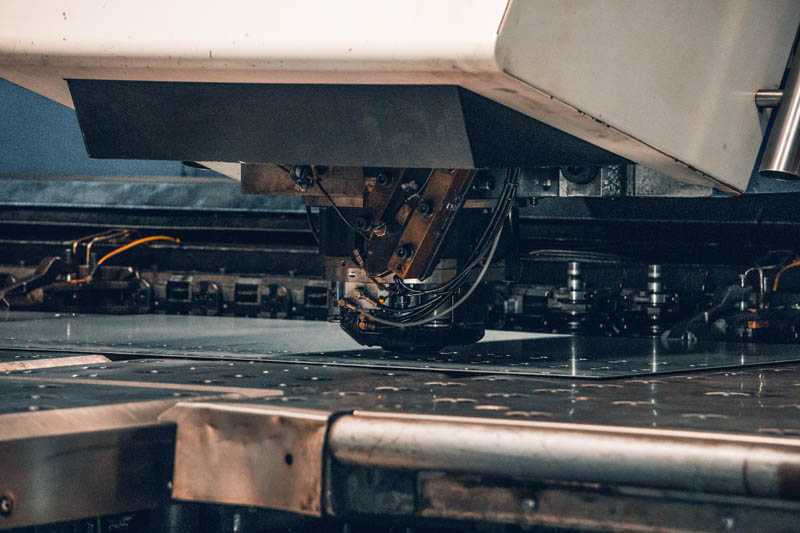

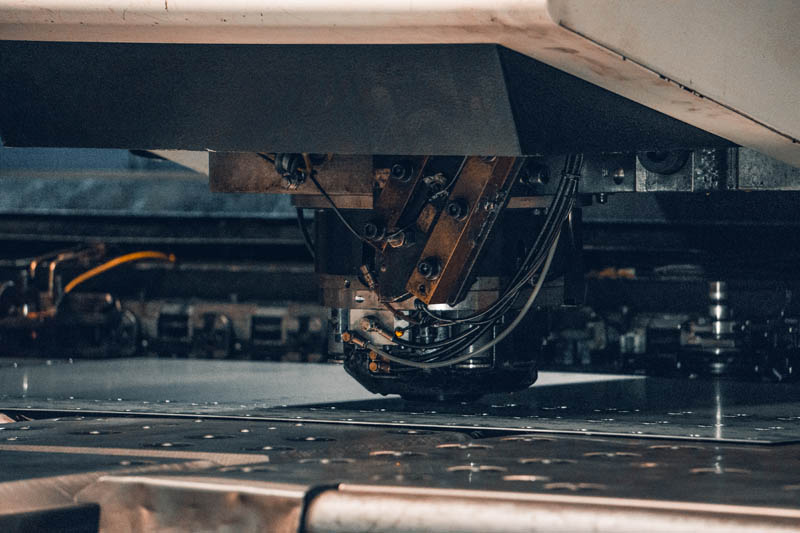

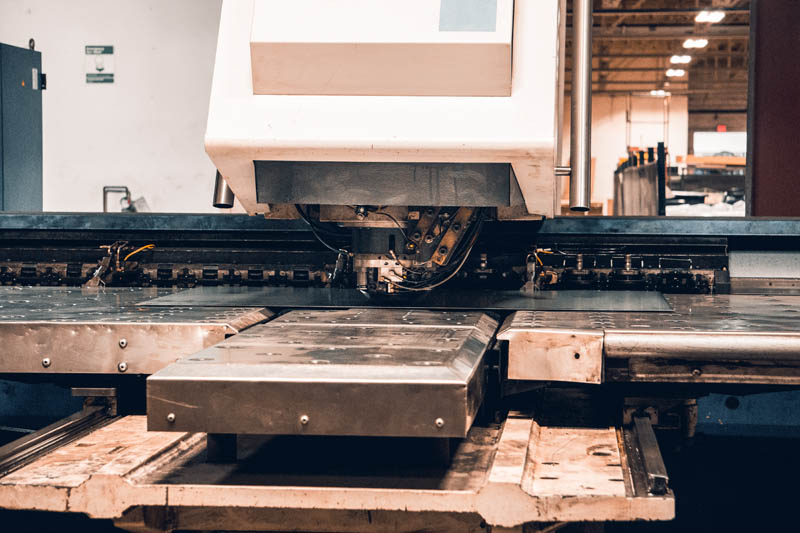

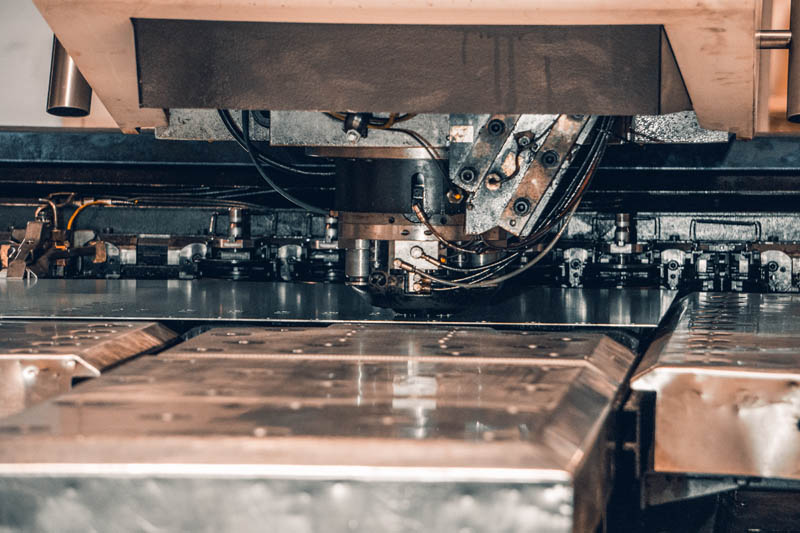

We can punch up to 1/4″ carbon steel sheets and up to 10 gauge stainless steel sheets. We can process sheets up to 50″ x 144″ with our large Amada CNC punch. Our CNC punching machines can also produce parts with blemish free punched edges, eliminating the need for further finishing.

Production Volume

We deal with all types of orders, from prototypes and single pieces to full production runs.

Secondary and Finishing Operations

To finish a part or assembly, ICF Industries can provide a wide range of services and secondary operations such as:

• Welding
• Bending
• Forming
• Powder Coating
• Labeling and Silk Screening
• Zinc and Chromate Plating

In-House Equipment

• Amada EMLK 3610NT with ASR Punch/Laser – 30 Ton Capacity/4,000 Watt Laser
